YDAF9-456-31

Product Details

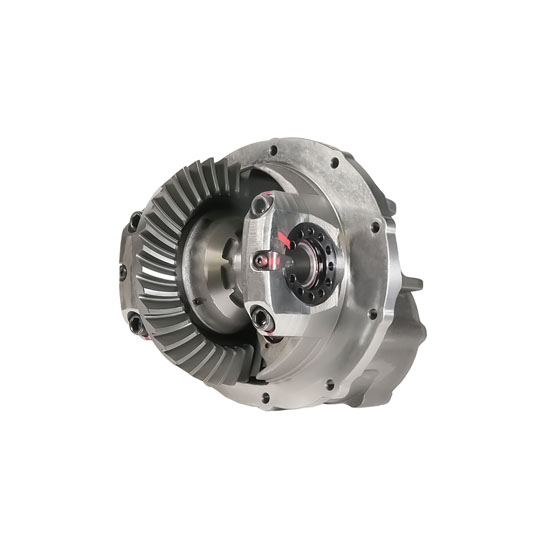

Yukon dropout assemblies are built by expert Yukon technicians and come complete, properly shimmed and backlashed to spec. All you do is install the third member into your diff housing, bolt on the diff cover, add fluid, and roll. This unit features a nodular iron case which improves rigidity and power handling, reducing deflection for consistent gear contact and a long service life.

Fits Ford 9” differential
Complete, fully assembled dropout
4.56 gear ratio
31 spline
Does not include yoke

Technical Notes

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Upsell	YES3RD
Brand	Yukon Gear & Axle
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Keywords	31spl,3RD,4.56,9,ASSEMBLY,CARRIER,FORD,MEMBER,RATIO,STD,ww/o,YDA,Yoke
Spline Count	31
Gear Ratio	4.56
UPC	883584132318
ProxyNumber	13231
Width	13.00 in
Length	13.00 in
Depth	16.00 in
Weight	75.0000 lb
