Yukon 4340 Chrome-Moly replacement rear axle for Dana 44, 30 spline | YA WD44-30-32.0 | RANDYS Worldwide

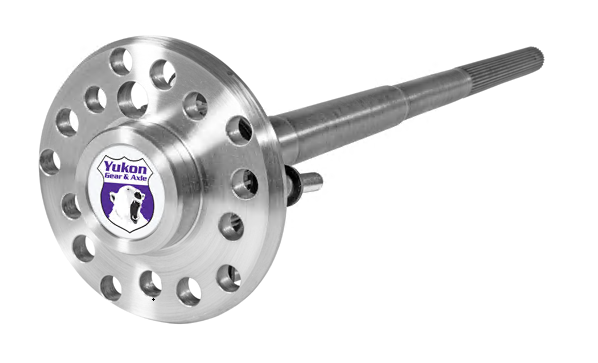

Yukon Chromoly Rear Axle, Dana 44, JK Rubicon, 30 Spline, 32” Long, Cut to Fit

Product Details

Yukon high-performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced induction coil heat treating to create an axle of unmatched quality and durability.

Fits Dana 44 differential
30 spline
Cut to length design fits 26"-32" applications
Triple drilled: 5 x 4.5", 5 x 5" and 5 x 5.5" bolt patterns
4340 chromoly construction
Fits Jeep Wrangler, Cherokee and JK non-Rubicon rear with Dana Spicer 44 differential

Technical Notes

Brake offset is 2.783" Does NOT fit Scout, CJ, or Wagoneer WILL work for TJ, XJ, MJ & JK 30 spline applications Triple Drilled for 5"x4.5", 5"x5", & 5"x5.5"; 32 inches long, 30 spline

Warranty Information

Warranty information unavailable

Compatible Make / Model

Compatible Differentials

Specification

Upsell	YESAXLE
Brand	Yukon Gear & Axle
Prop65 Warning	Not Applicable
Keywords	32,26,30spl,4340,AX:D44-R-CTL-30,AXLE,CUT2LTH,D44,DRLD,NOT12,Scout12,orWagoneer!,REAR,SHAFT,TRIPLE,YA
Technical Notes	Brake offset is 2.783" Does NOT fit Scout, CJ, or Wagoneer WILL work for TJ, XJ, MJ & JK 30 spline applications Triple Drilled for 5"x4.5", 5"x5", & 5"x5.5"; 32 inches long, 30 spline
Float Type	Bolt-In
UPC	883584217039
ProxyNumber	21703
Width	4.00 in
Length	33.00 in
Depth	4.00 in
Weight	22.0100 lb
