YA WAK-003

Yukon Chromoly Rear Axle Kit, Dana 35, Jeep JL Non-Rubicon, 29 Spline, 2 Sides

Product Details

Yukon high-performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced induction coil heat treating to create an axle of unmatched quality and durability.

Fits Dana 35 differential
29 spline
LH and RH axle shafts measure 32.3” long
For both sides
Heavy duty 4340 chromoly construction

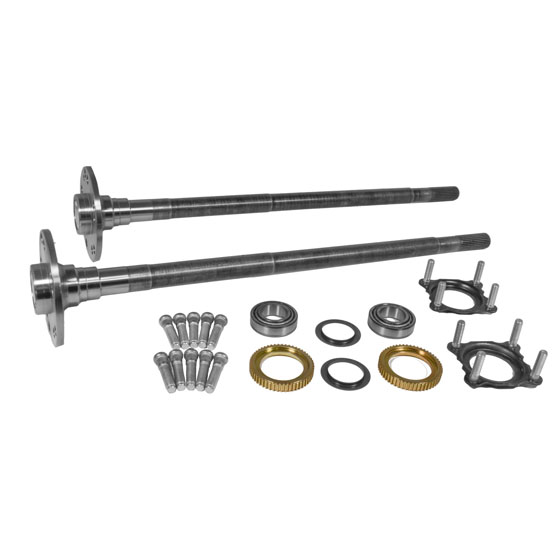

Includes two axle shafts, axle bearings, seals, bearing retainers, wheel studs, ABS ring, and dust shield

Technical Notes

Fits with Axle Code DRZ = D35/ M200 Rear; Both Left & Right Axles = 32.3" Long; Small Bearing (Set10) Axle = 1.562" ID / 2.875" OD Bearing; Double Drilled Flange 5 x 5" & 5 x 5.5" Bolt Pattern

Warranty Information

Warranty information unavailable

Compatible Make / Model

Jeep Wrangler (2018-2020)

Specification

Upsell	YESAXLE
Brand	Yukon Gear & Axle
Prop65 Warning	Not Applicable
Keywords	,32.3,4340,AXLE,BRG,BRGS,D35,DRZ,JL,KIT,LH,NON,REAR,RH,RUBICON,SMALL,wYA
Technical Notes	Fits with Axle Code DRZ = D35/ M200 Rear; Both Left & Right Axles = 32.3" Long; Small Bearing (Set10) Axle = 1.562" ID / 2.875" OD Bearing; Double Drilled Flange 5 x 5" & 5 x 5.5" Bolt Pattern
UPC	883584112266
ProxyNumber	11226
Width	9.00 in
Length	36.00 in
Depth	9.00 in
Weight	92.0000 lb
