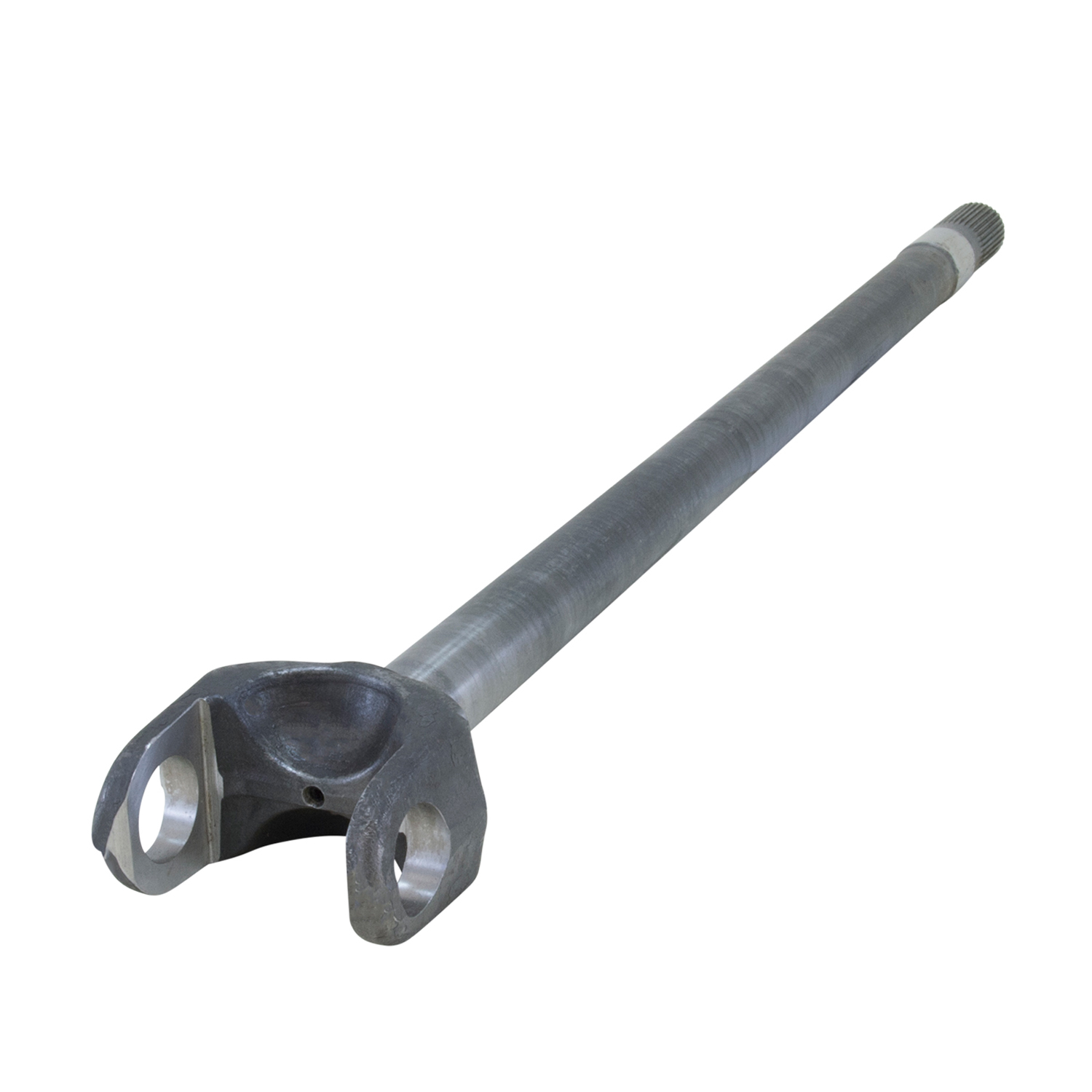

Yukon 4340 Chromoly right hand inner replacement axle for Dana 30 in '12 & up JK, 34.5" long, 27spl | YA W38831 | RANDYS Worldwide

Product Details

Yukon high-performance axles are built with high-tensile strength 4340 chromoly, use superior production methods that include cold roll formed splines, and feature advanced induction coil heat treating to create an axle of unmatched quality and durability.

Fits Dana 30 differential
27 spline
Measures 34.5” long
Front inner axle, right-hand side
Heavy duty 4340 chromoly construction
Uses 7166 Series u-joint

Technical Notes

Uses 1350 series 7166X U/Joint. Works for 07-11 JK Dana 30 upgrade when the inner and outer axles are replaced together.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Compatible Differentials

Dana 30 Front, JK Non Rubicon

Specification

Upsell	YESAXLE
Brand	Yukon Gear & Axle
Prop65 Warning	Not Applicable
Keywords	12UP,12UP,135012,U/JOINT,27spl,27spl,34.5,34.5,4340,4340,716612,U/JOINT,AXLE,AXLE,D30,D30,INNER,INNER,JK,JK,RH,RH,uses,uses,YA,YA
Technical Notes	Uses 1350 series 7166X U/Joint. Works for 07-11 JK Dana 30 upgrade when the inner and outer axles are replaced together.
UPC	883584217855
ProxyNumber	21785
Width	4.00 in
Length	36.00 in
Depth	2.00 in
Weight	13.3900 lb
