RAA434-1969X3

Zumbrota Performance Axle, Front Axle Assembly, Chrysler 9.25, '13 Ram 2500, 4.30 Ratio, Open

Product Details

When your lifestyle includes the needs for stronger traction, higher speeds and heavier towing capabilities, Zumbrota Performance Axles check the box. OE replacement is fine until bigger tires, higher horsepower, a boat or trailer require a higher caliber of strength to your drivetrain. This is where aftermarket ratios, limited slip differentials, lockers and high-quality nodular iron differential covers are needed to fit the way you drive. When choosing the best products in performance upgrades, Yukon Gear & Axle products were chosen for the engineering quality and reputation to take on the heaviest in performance and reliability. At Zumbrota, drivetrain axle assemblies are rebuilt to the highest quality standards of precision and reliability. Each Axle assembly is thoroughly inspected for straightness, cracks and surface wear. All internal components are fully inspected and tested including ring & pinions, internal gears, clutches, and carriers. All bearings & seals are replaced. Your choice of gears are fully inspected for optimal tooth contact patterns and correct rolling torque using inch-pound measurements for precise setup and longevity. Positraction and Locker choices finish the upgrade for performance. Zumbrota uses an exclusive hydro-blast rinse and sandblasting procedure on internal and external parts, followed by a proprietary shot-enticed deep cleaning, setting the standard for Axle assembly remanufacturing.

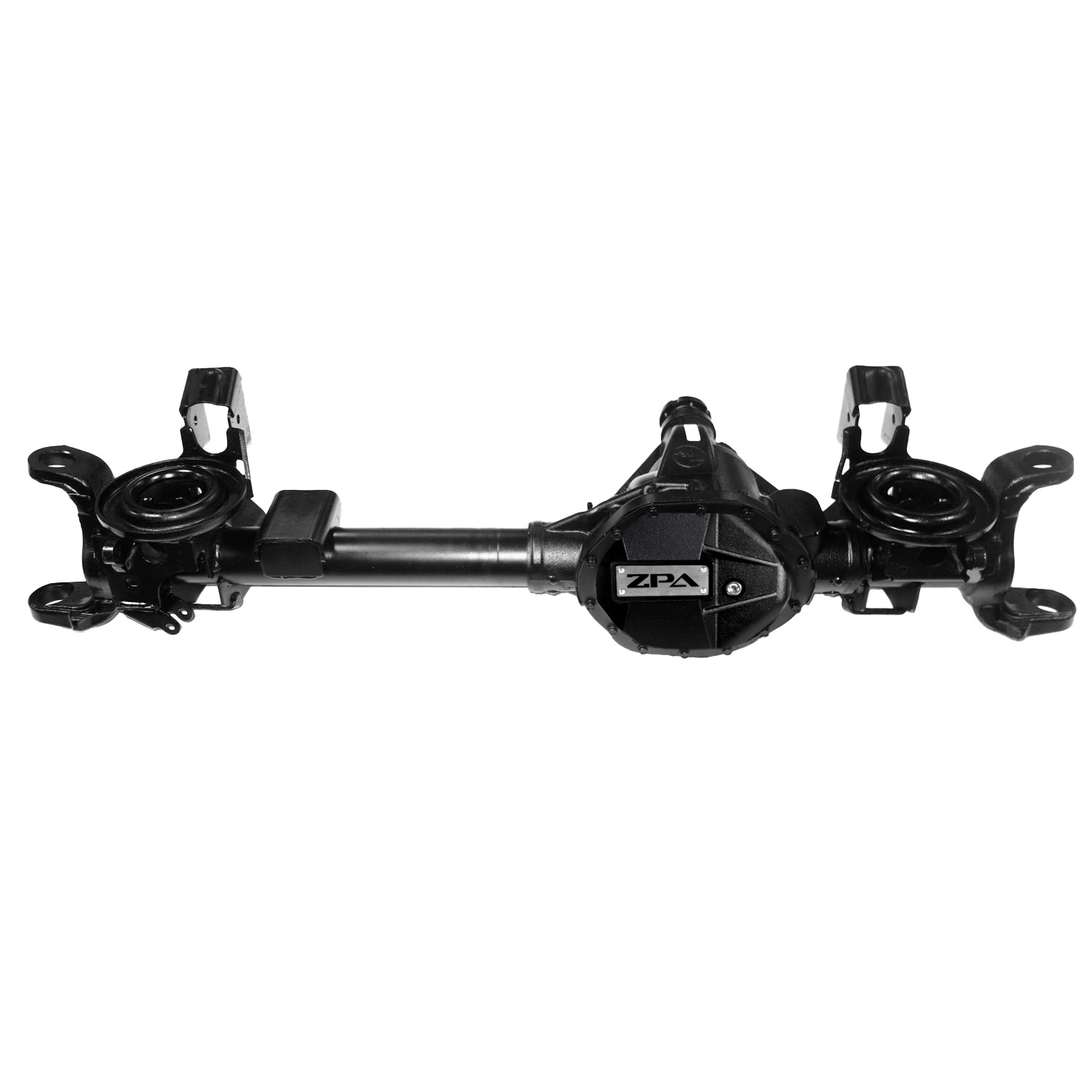

Front Axle Assembly for Chrysler 9.25 with a Open in a 4.30 Ratio
Zumbrota Performance Axles are the standard in remanufacturing performance
Aftermarket gear upgrades are provided for enhanced performance for the way you drive
Custom options of Limited Slip Differentials and Lockers provide customized performance for the vehicle owner
High quality nodular steel ZPA differential covers are added to provide the highest strength protection to drivetrain internals
All tubes are inspected to ensure they are straightened to OEM specifications.
All housings are tested for surface wear and cracks.

Technical Notes

Warranty Information

Warranty information unavailable

Compatible Make / Model

Ram 2500 (2013-2013)

Specification

Brand	Zumbrota Drivetrain
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Gear Ratio	4.30
UPC	883584158851
ProxyNumber	15885
Width	30.00 in
Length	80.00 in
Depth	24.00 in
Weight	300.0000 lb

FAQs

Depends on the axle type. Semi-float and C-clip-equipped axle shafts are measured from the end of the shaft to the outer edge of the mounting flange. Axles with yokes (front axle shafts) are measured from the center of the u-joint bore to the end of the splines. Full-float designs are measured from the spline ends to the front surface of the mounting flange.

Click here for a detailed schematic of how to properly measure axles.

A semi-float axle rides on an outer bearing, thus supporting the weight of the vehicle. In semi-float applications the wheel is bolted directly to the axle. A full-float axle is a housing type in which the axle does not carry the load of the vehicle and does not have the wheel bolt directly to it. Full-float axles bolt to a spindle, which ultimately drives the wheels. They can also be removed with the wheel still on the vehicle.

Get some great insider information from our “How to Identify Your Differential & Axle Type | Differential Tech Tips” video.

How to Identify Your Differential & Axle Type | Differential Tech Tips

We predominantly use five metal types; 4320, 4340, 8620, 9310, and 1541H.

4300-series is a nickel-chromium-molybdenum alloy, i.e. chromoly, that’s low in carbon content. 4320 is used for the internals in our line of Yukon Dura Grip LSDs. We use 4340 in the manufacturing of forged gears, pinion gears, high-performance axles, Super Joints, and more. 8620 is a low-nickel alloy steel generally used in the manufacture of forged camshafts, crankshafts, and fasteners. We use it in gears and cases. 9310 is an alloy steel with more nickel and chromium than 8620. 9310 can better endure high shock loads without failing and we use it in Spartan Lockers. 1541H is a high-grade carbon steel used in our replacement axles and u-joints, and similar products. A caveat here, heat-treating plays a definitive role in a given alloy’s hardness and other properties that impact their performance in automotive drivetrain applications. We use advanced heat-treating techniques to fine tune our alloys to their intended usage.
