Product Details

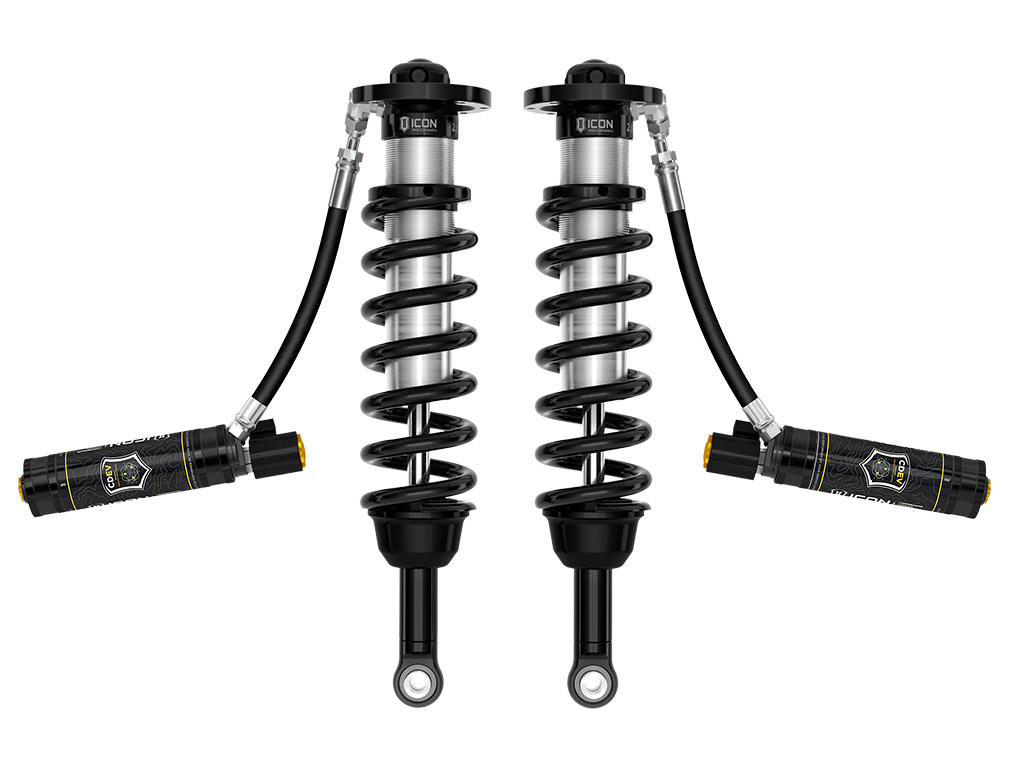

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir CDEV front coilover shocks are an incredible upgrade for the front end of the 2023-2024 Toyota Sequoia TRD Pro. These adjustable coilovers allow up to 1-2.5” of lift height adjustability on Sequoia TRD Pro, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. Additionally, their vehicle specific shock length allows the stock, billet TRD front upper control arms to be utilized with the new suspension system, eliminating the requirement for ICON front UCAs.The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with ICON 2.5 or 3.0 Series CDEV rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Sequoia TRD Pro.

  • Increased wheel travel and improved ride quality over stock
  • FK rod end bearings for extended longevity and minimal deflection
  • Fully rebuildable and re-tunable
  • Vehicle specific tuned for superior shock damping and control
  • Specifically designed shock lengths for compatibility with Sequoia TRD Pro's stock front upper control arms
  • Adjustable ride height offers 1-2.5" of front lift over stock on Sequoia TRD Pro
  • Remote reservoirs maintain cooler operating temperatures during extended off-road use

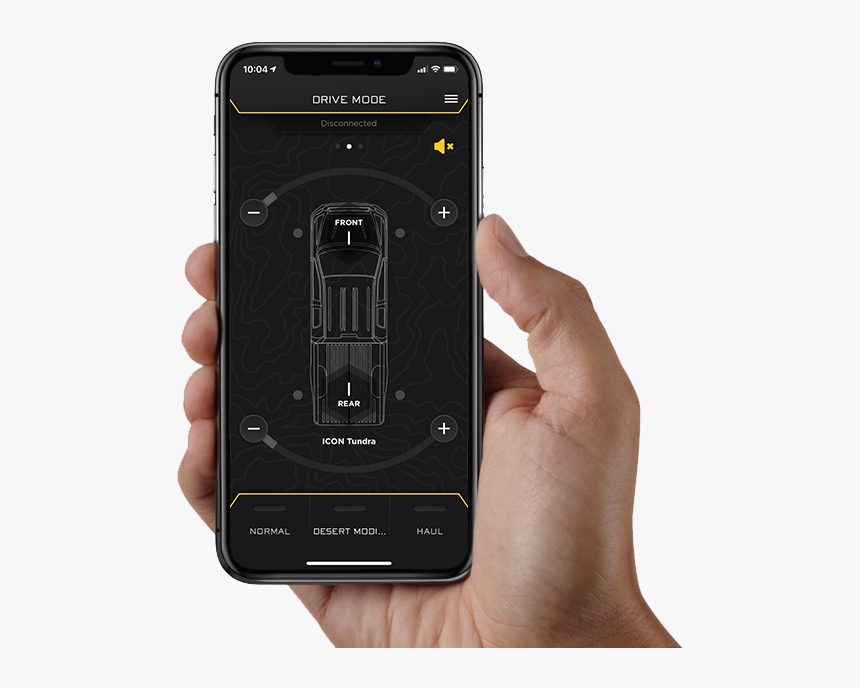

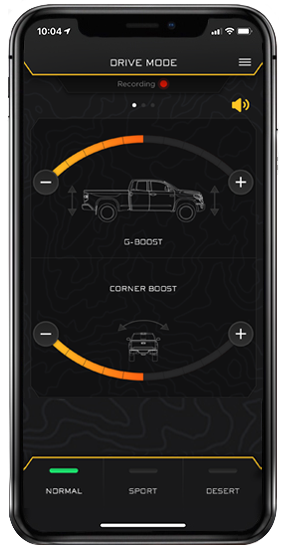

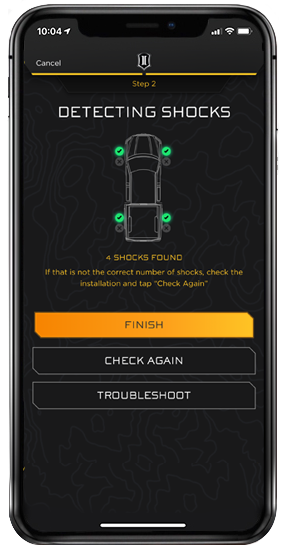

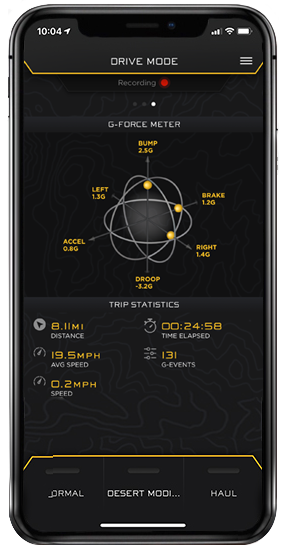

  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • ICON engineered coil springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts

Technical Notes

  • OEM Wheels & Tires Fitment: Yes
  • TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
  • APPLICATION NOTE #189: For Sequoia TRD Pro ICON Diff Drop (part# 55156) is recommended but not required. If installing ICON Diff Drop, ICON Skid Plate Spacer Kit (part# 55164) is also required.
  • APPLICATION NOTE #190: Designed for use with stock billet TRD front upper control arms
  • TECH NOTE: Also requires installation of IIC kit (Part # 53508) and CDEV rear shocks (Part # 57840EP or 57845EP)

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • OEM Wheels & Tires Fitment: Yes
  • TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
  • APPLICATION NOTE #189: For Sequoia TRD Pro ICON Diff Drop (part# 55156) is recommended but not required. If installing ICON Diff Drop, ICON Skid Plate Spacer Kit (part# 55164) is also required.
  • APPLICATION NOTE #190: Designed for use with stock billet TRD front upper control arms
  • TECH NOTE: Also requires installation of IIC kit (Part # 53508) and CDEV rear shocks (Part # 57840EP or 57845EP)
UPC 00840103432168
Maximum Lift 2.5
Material Steel
Body Diameter 2.5
Remote Reservoir Yes
Adjustable Height Yes
Spring Rate Type Linear
Spring Color Black
Adjustable Damping NO
Shaft Diameter 0.875
Damping Adjustment Type Electronic
Cylinder Color Silver
Cylinder Material Steel
Service Parts 252010 - 2.5 IFP REBUILD KIT
Add-On Part 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels 17x8.5" w/ 5.75” Backspace / 25mm Offset
Minimum Lift 1
Width 12.00 in
Length 27.00 in
Depth 8.00 in
Weight 61.0000 lb
Brand: ICON Vehicle Dynamics

ICON 2023-2024 Sequoia TRD Pro, 1-2.5" Lift, Front, V.S. 2.5 Series Front Coilover Kit, Remote Reservoir w/ CDEV, Pair

58772E

0 in stock , backorders available

$2,834.95
