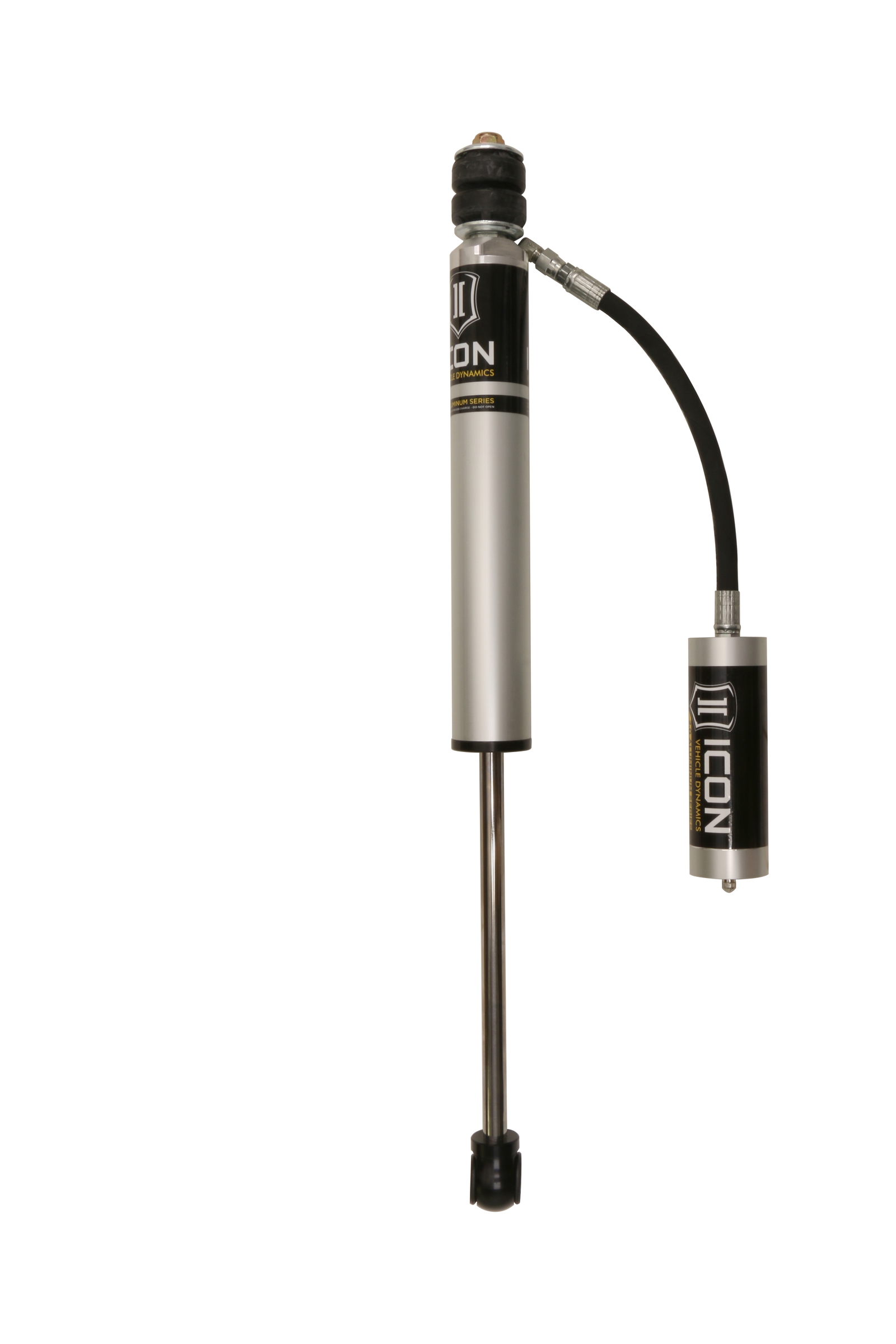

ICON VEHICLE DYNAMICS 05-UP TACOMA 4WD 0-1.5" REAR 2.0 VS RR

Product Details

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • 100% rebuildable
  • 100% revalveable
  • Nitrogen charged monotube design with remote reservoir
  • One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 5/8” chrome plated hardened steel shaft resists corrosion and pits
  • 6061 aluminum rod end, top cap, and internals ensure strength and durability
  • Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
  • Application-specific reservoir mounting hardware
  • 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
  • Nitrile rubber top out bumper for noise free operation

Technical Notes

  • TECH NOTE: Will not fit 2005-2015 5-Lug 2WD Toyota Tacoma

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • TECH NOTE: Will not fit 2005-2015 5-Lug 2WD Toyota Tacoma
UPC 00840103403052
Bushing Material Polyurethane
Bushing Color Black
Adjustable NO
Material Aluminum
Finish Anodized
Body Diameter 2
Remote Reservoir Yes
Color Black
Adjustable Damping No
Shaft Diameter 0.625
Cylinder Color Gray
Shaft Material Chrome
Cylinder Material Aluminum
External Reservoir Yes
Service Parts 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Add-On Part 252012 - -4 TO -10 HOSE SHIELD KIT
Width 3.00 in
Length 40.00 in
Depth 7.00 in
Weight 7.0000 lb
Brand: ICON Vehicle Dynamics

ICON 2005-2023 Toyota Tacoma, 0-1.5" Lift, Rear, 2.0 Aluminum Series Remote Reservoir Shock

56503R

2 in stock

$314.95
