Product Details

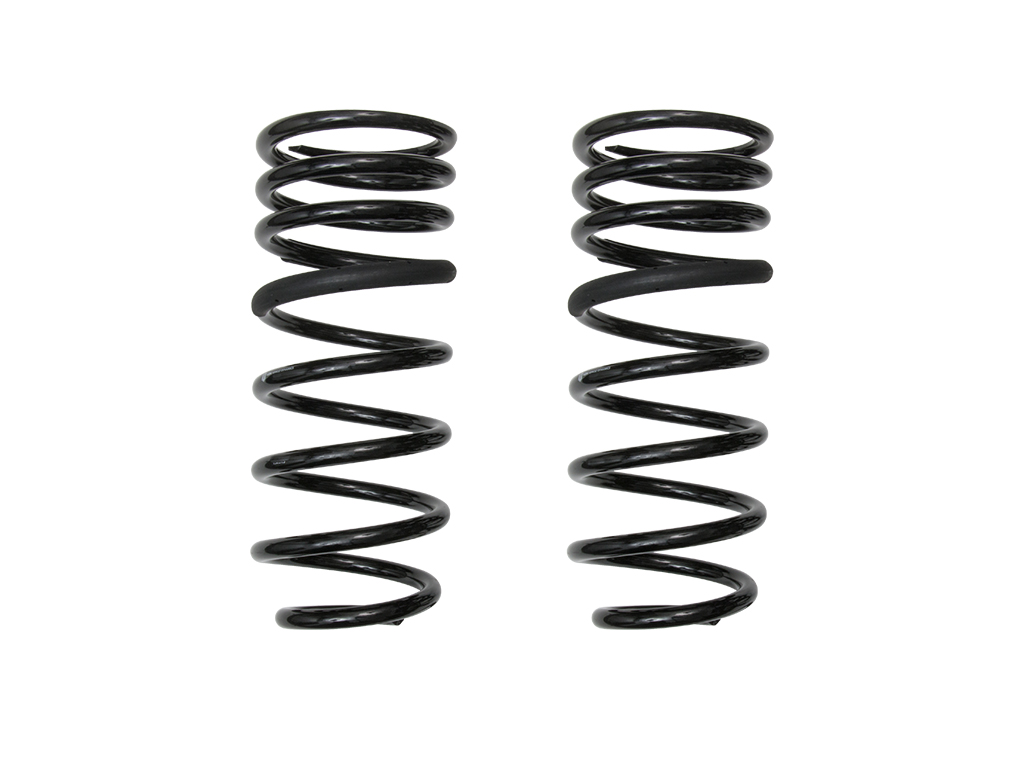

ICON Dual Rate rear coil springs for the 2023-2024 Toyota Sequoia TRD Pro provide 2" of rear lift height over stock as well as greatly enhancing on- and off-road performance, especially when used with ICON shock absorbers and suspension components. In additon to Sequoia TRD Pro, these springs will also yield 2" of rear lift on other Sequoia submodels that are equipped with the TRD Off-Road package and 4" of rear lift on non-TRD equipped submodels. Making these coils springs an excellent option for those desiring taller rear ride heights. Their dual-rate coil design provides a softer ride rate with a firmer overload rate that combine to deliver on-road comfort with excellent bottoming resistance and superior off-road performance. Like all ICON coil springs, they feature a lifetime guarantee against sagging/breakage to produce confidence in knowing that you have the best suspension products available for the 2023-2024 Toyota Sequoia.

  • Vehicle specific design for 23-24 Sequoia TRD Pro
  • Provide 2" of rear lift height over stock
  • Dual rate rear coil springs with ICON-engineered ride and overload rates
  • Significantly improves on- and off-road ride quality and performance over stock
  • Dual stage powder coating for corrosion resistance
  • Lifetime guarantee against sagging/breakage

Technical Notes

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
  • APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
  • TECH NOTE: Provides 2" of rear lift over stock on Toyota Sequoia equipped with TRD Off-Road package or Sequoia TRD Pro. Other Sequoia submodels without without TRD Off-Road package will net 4" of rear lift over stock. For shorter rear ride heights, consider part number 51212.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
  • Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
  • APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
  • TECH NOTE: Provides 2" of rear lift over stock on Toyota Sequoia equipped with TRD Off-Road package or Sequoia TRD Pro. Other Sequoia submodels without without TRD Off-Road package will net 4" of rear lift over stock. For shorter rear ride heights, consider part number 51212.
UPC 00840103432120
Material Steel
Finish Powdercoated
Maximum Lift Height 4
Rear Spring Rate Type Progressive Dual Rate
Spring Color Black
Color Black
Width 14.00 in
Length 22.00 in
Depth 8.00 in
Weight 41.0000 lb
Brand: ICON Vehicle Dynamics

ICON 2023-2024 Toyota Sequoia TRD, Rear, 2" Lift, Dual Rate Coil Spring Kit

51216

47 in stock

$419.95
