ICON Impact Armor Fairlead Mount

Product Details

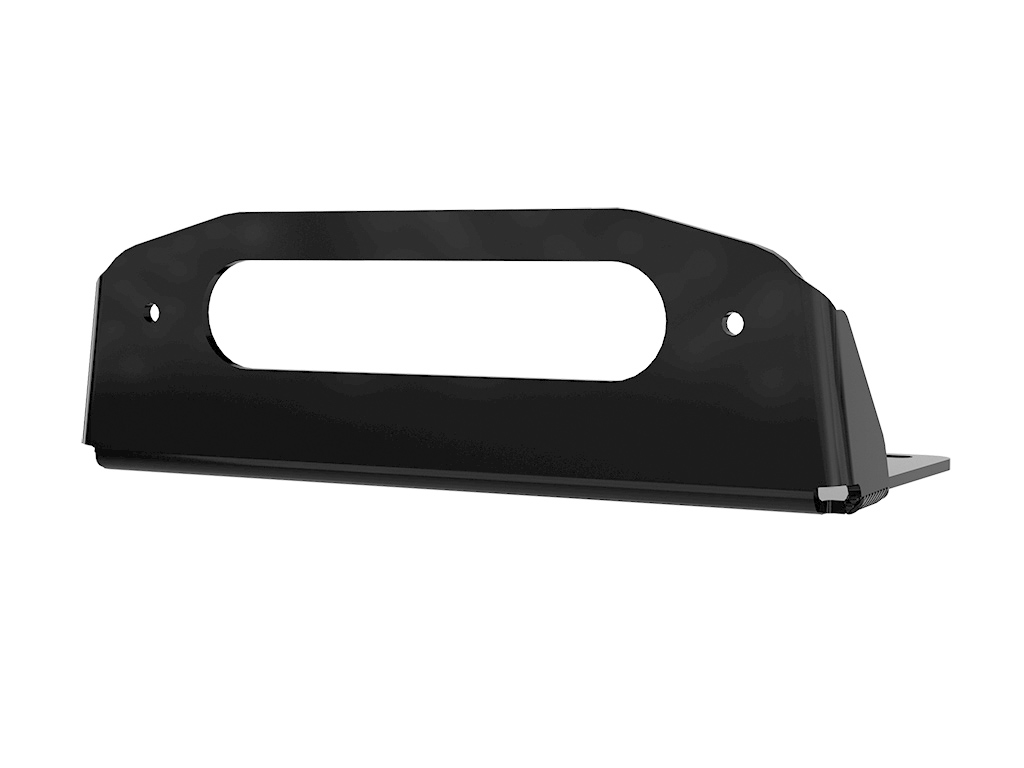

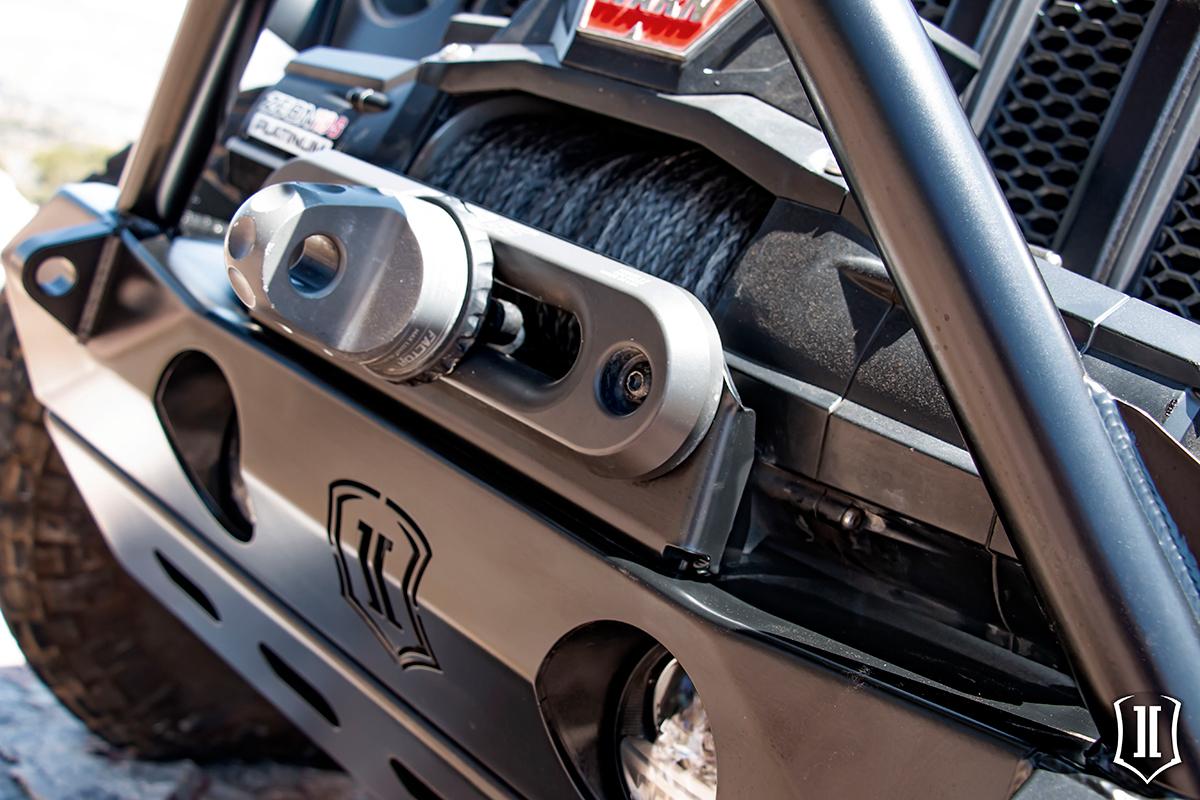

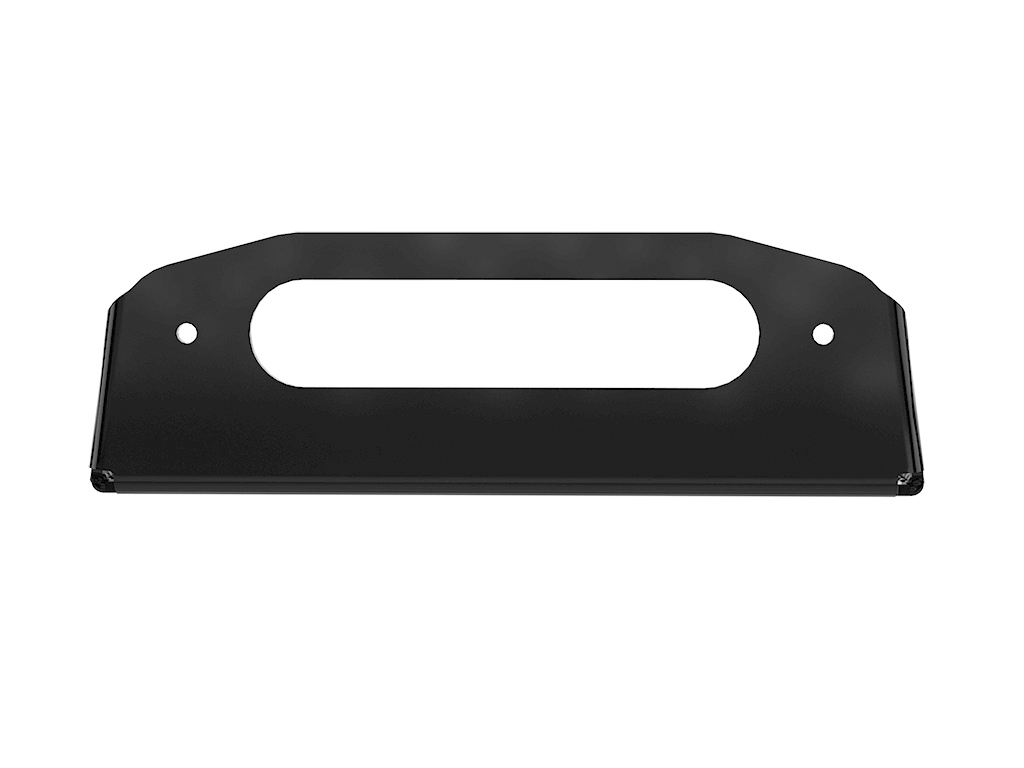

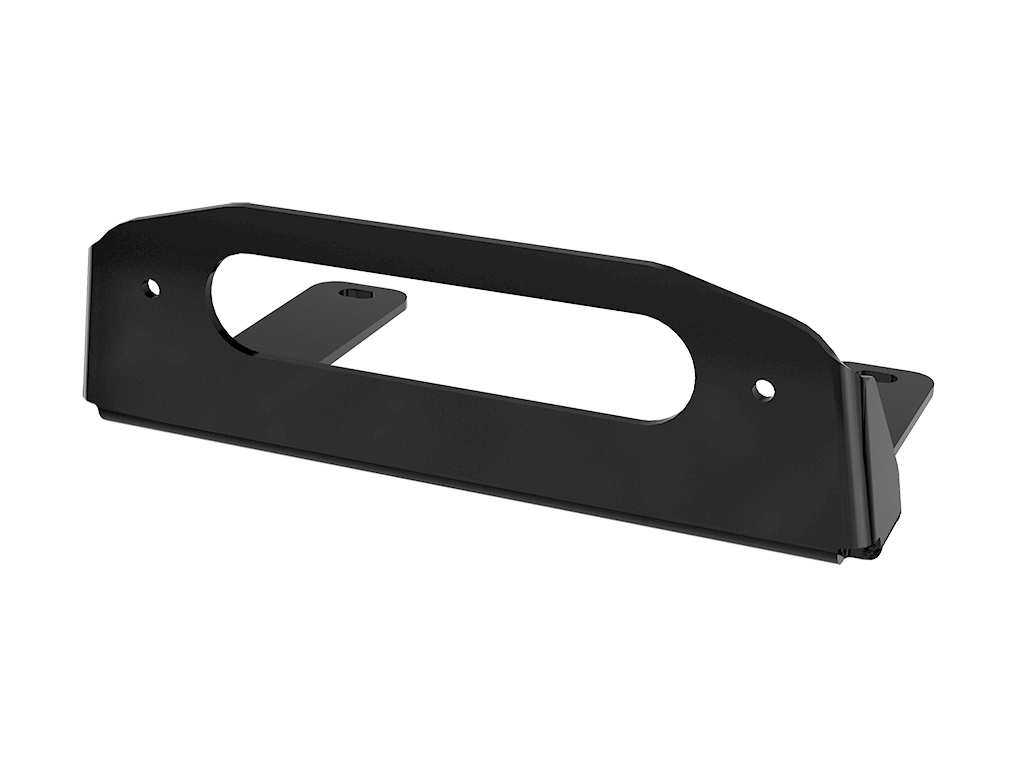

The ICON Impact Winch Fairlead Mount provides an extremely tough mounting solution for your roller or Hawse winch fairlead. Crafted from durable 3/16” steel, CNC laser cut and precision brake-formed with strengthening gussets on either side, and finished in durable multi-stage black powder coat. The Fairlead Mount is compatible with most winches using the universal 10" X 4-1/2" mounting bolt pattern, and with standard-width fairleads using a 10" bolt spacing. The Fairlead Mount installs between the bumper surface and the winch, using the winch's mounting bolts. Compatible with ICON Impact PRO Series or COMP Series Impact bumpers (except Recessed Winch models, which feature integrated fairlead mounting), as well as other manufacturers' top-mount winch-ready bumpers.

Rugged 3/16” steel construction with dual lateral edge returns for added strength
CNC laser cut and brake-formed
Works with roller or Hawse winch fairleads
Easy do-it-yourself installation
Durable multi-stage semi-gloss black powder coat finish
ICON Impact Series Limited Lifetime Warranty

Technical Notes

Winch mount capable bumper required for installation
Fits winches with the common 10” x 4-1/2” mounting bolt pattern
Fits winch fairleads with the common 10" bolt spacing (does not fit narrow or "comp" fairleads)
Not compatible with front-mounting winches such as the Warn 8274

Warranty Information

Warranty information unavailable

Specification

Brand	ICON Impact Series Offroad Armor
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Technical Notes	Winch mount capable bumper required for installation Fits winches with the common 10” x 4-1/2” mounting bolt pattern Fits winch fairleads with the common 10" bolt spacing (does not fit narrow or "comp" fairleads) Not compatible with front-mounting winches such as the Warn 8274
UPC	00840103409566
Material	Steel
Finish	Powder Coated
Color	Black
Width	8.00 in
Length	14.00 in
Depth	6.00 in
Weight	5.0000 lb
